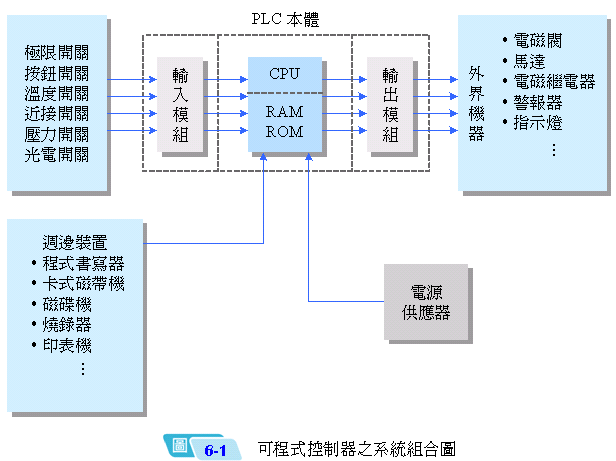

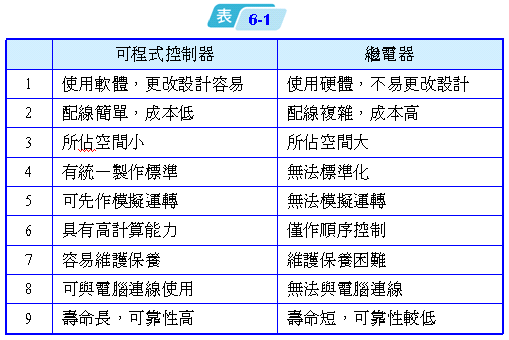

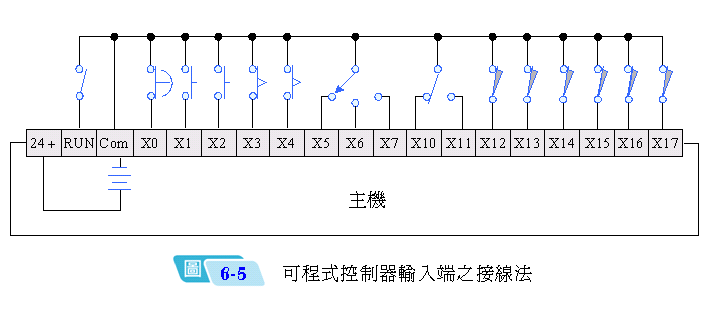

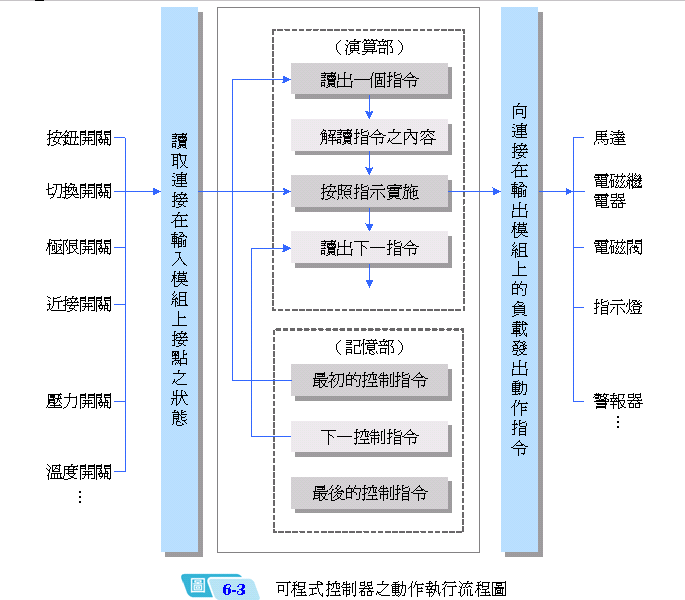

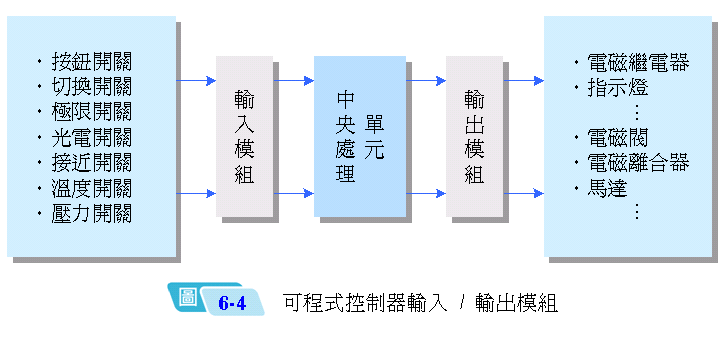

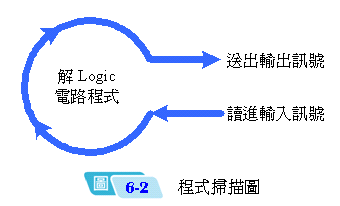

可程式控制器之接線法
　

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

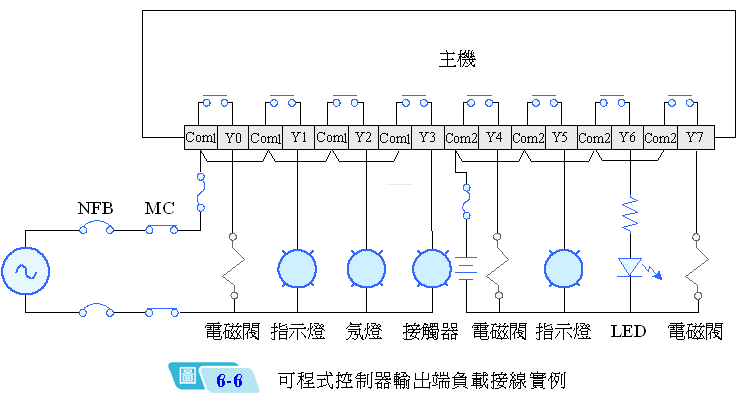

(二) 輸出端之接線法

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

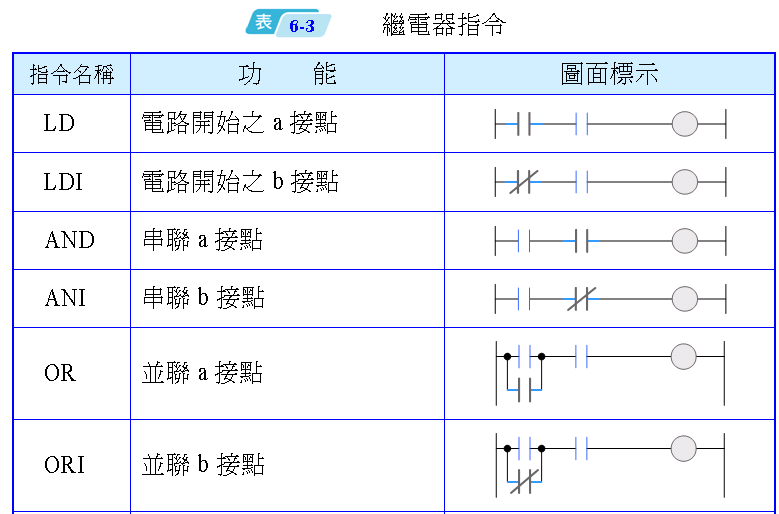

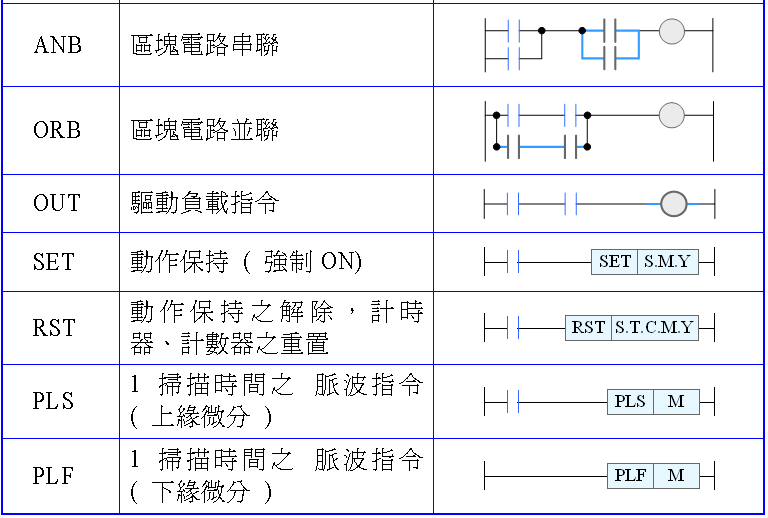

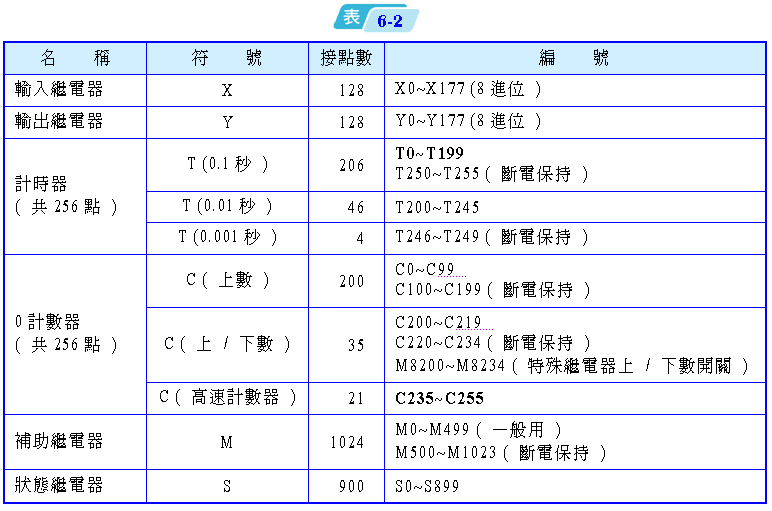

可程式控制器之指令說明

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

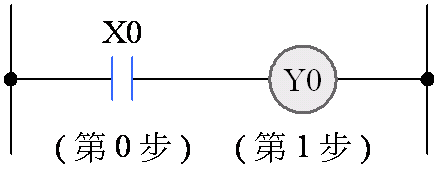

LD指令

Address	PLC Code	Number
0	LD	X0
1	OUT	Y0
2	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

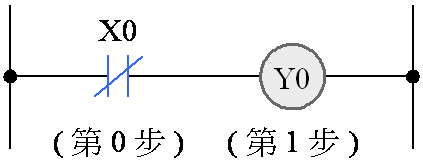

LDI指令

Address	PLC Code	Number
0	LDI	X0
1	OUT	Y0
2	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

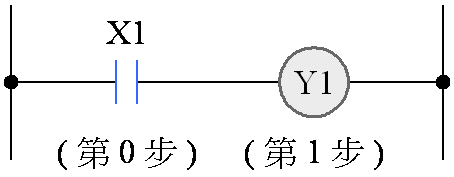

OUT指令

Address	PLC Code	Number
0	LD	X1
1	OUT	Y1
2	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

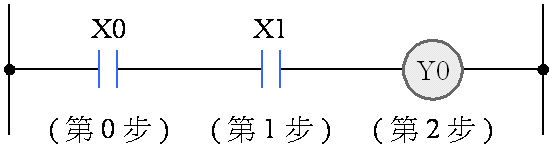

AND指令

Address	PLC Code	Number
0	LD	X0
1	AND	X1
2	OUT	Y0
3	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

ANI指令

Address	PLC Code	Number
0	LD	X0
1	ANI	X1
2	OUT	Y0
3	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

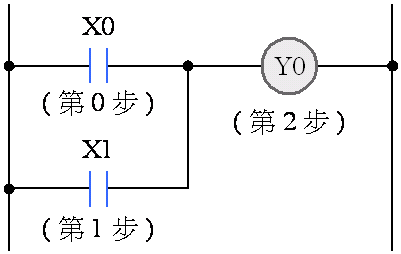

OR指令

Address	PLC Code	Number
0	LD	X0
1	OR	X1
2	OUT	Y0
3	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

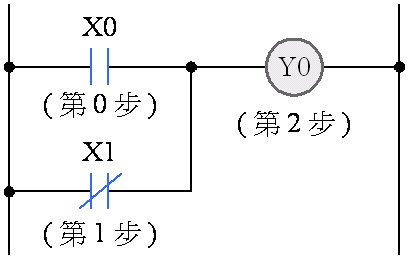

ORI指令

Address	PLC Code	Number
0	LD	X0
1	ORI	X1
2	OUT	Y0
3	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

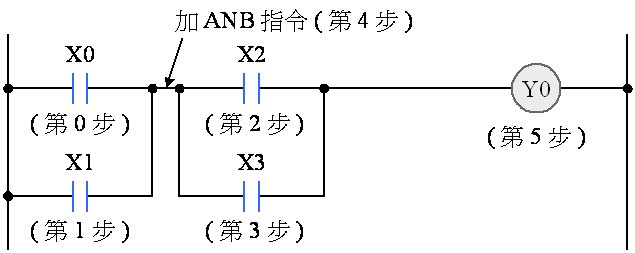

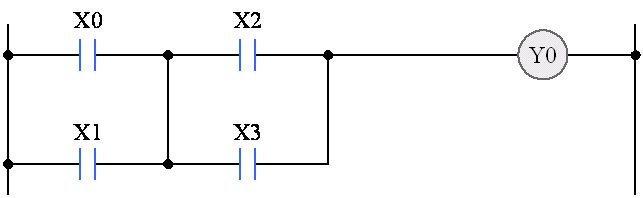

ANB指令

Address	PLC Code	Number
0	LD	X0
1	OR	X1
2	LD	X2
3	OR	X3
4	ANB
5	OUT	Y0
6	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

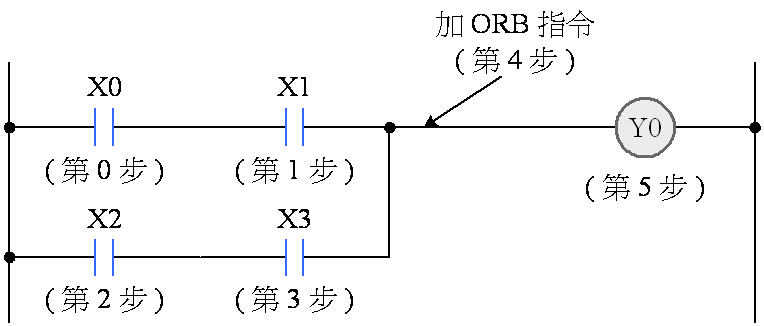

ORB指令

Address	PLC Code	Number
0	LD	X0
1	AND	X1
2	LD	X2
3	AND	X3
4	ORB
5	OUT	Y0
6	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

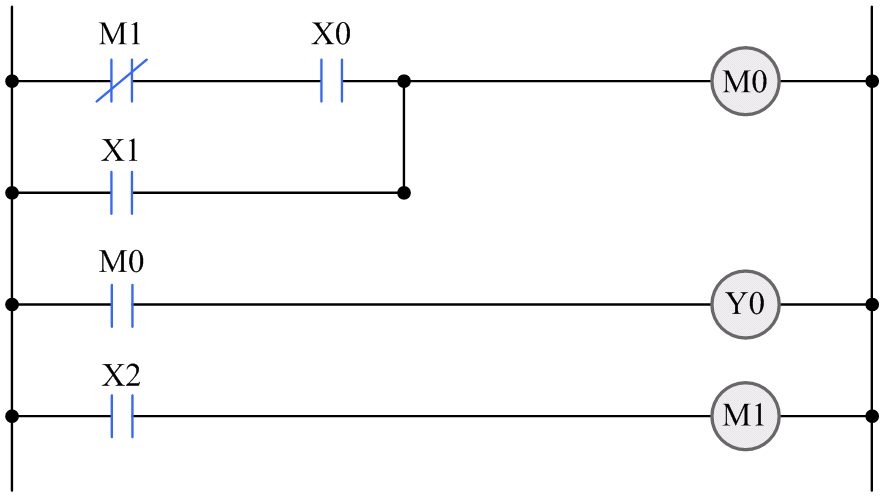

補助繼電器M指令

Address	PLC Code	Number
0	LDI	M1
1	AND	X0
2	OR	X1
3	OUT	M0
4	LD	M0
5	OUT	Y0
6	LD	X2
7	OUT	M1
8	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

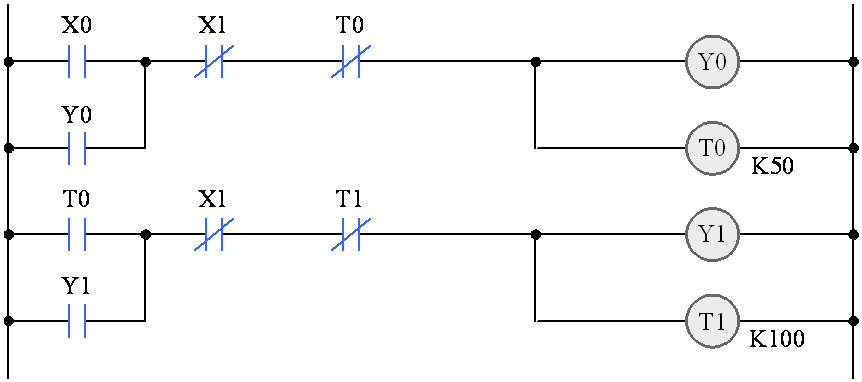

計時器T指令

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	9	OR	Y1
1	OR	Y0	10	ANI	X1
2	ANI	X1	11	ANI	T1
3	ANI	T0	12	OUT	Y1
4	OUT	Y0	13	OUT	T1
5	OUT	T0		K	100
	K	50	16	END
8	LD	T0

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

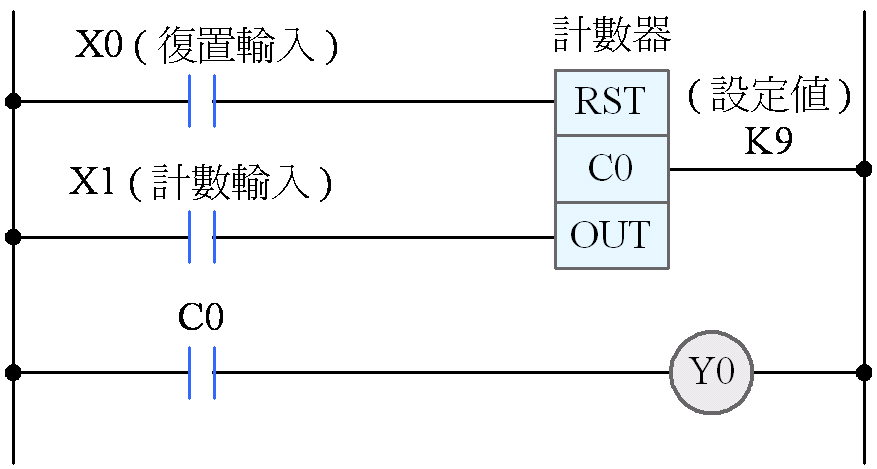

計數器C指令與RST指令

Address	PLC Code	Number
0	LD	X0
1	RST	C0
3	LD	X1
4	OUT	C0
	K	9
7	LD	C0
8	OUT	Y0
9	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

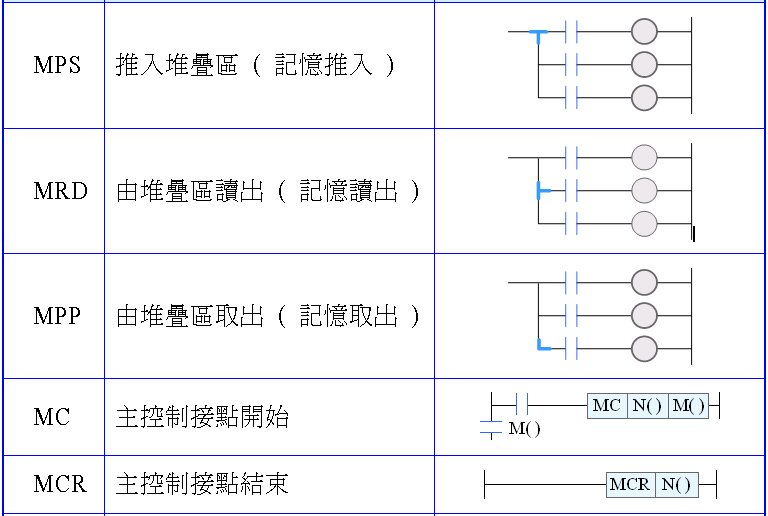

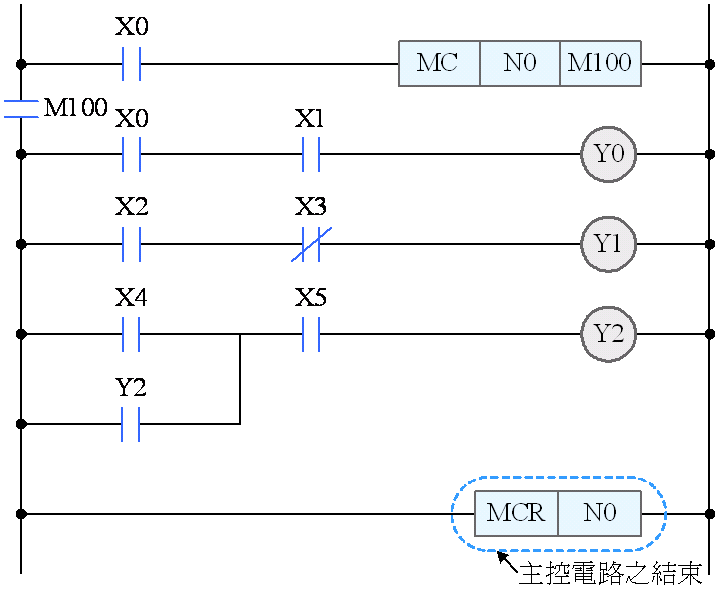

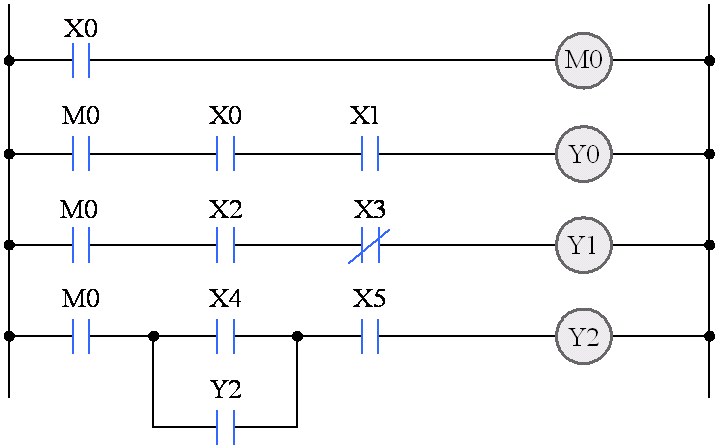

MC指令與MCR指令

Address	PLC Code	Number
0	LD	X0
1	MC (N) 0	M100
4	LD	X0
5	AND	X1
6	OUT	Y0
7	LD	X2
8	ANI	X3
9	OUT	Y1
10	LD	X4
11	OR	Y2
12	AND	X5
13	OUT	Y2
14	MCR	(N)0
16	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

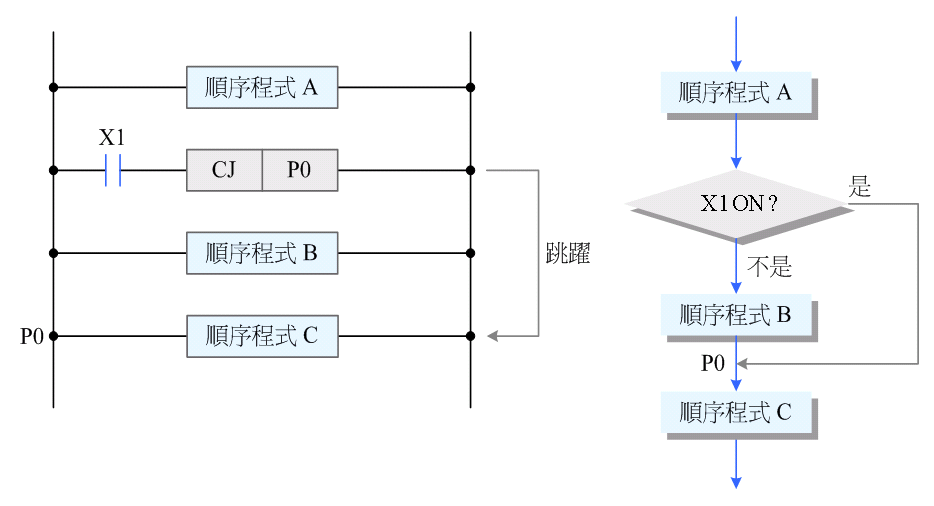

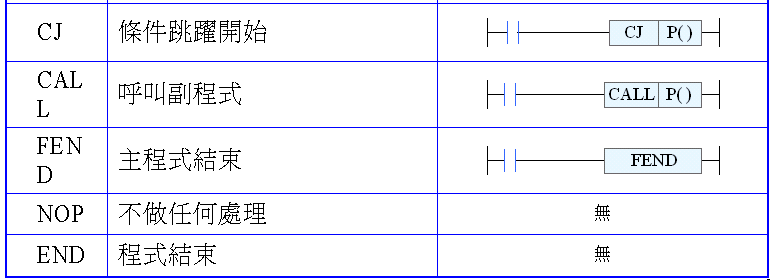

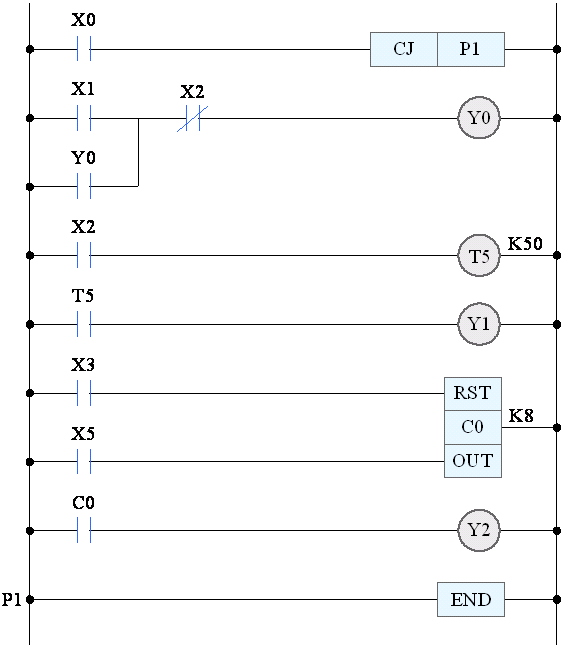

CJ指令

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	12	OUT	Y1
1	CJ	P1	13	LD	X3
3	LD	X1	14	RST	C0
4	OR	Y0	16	LD	X5
5	ANI	X2	17	OUT	C0
6	OUT	Y0		K	8
7	LD	X2	20	LD	C0
8	OUT	T5	21	OUT	Y2
	K	50	22	P1
11	LD	T5	23	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

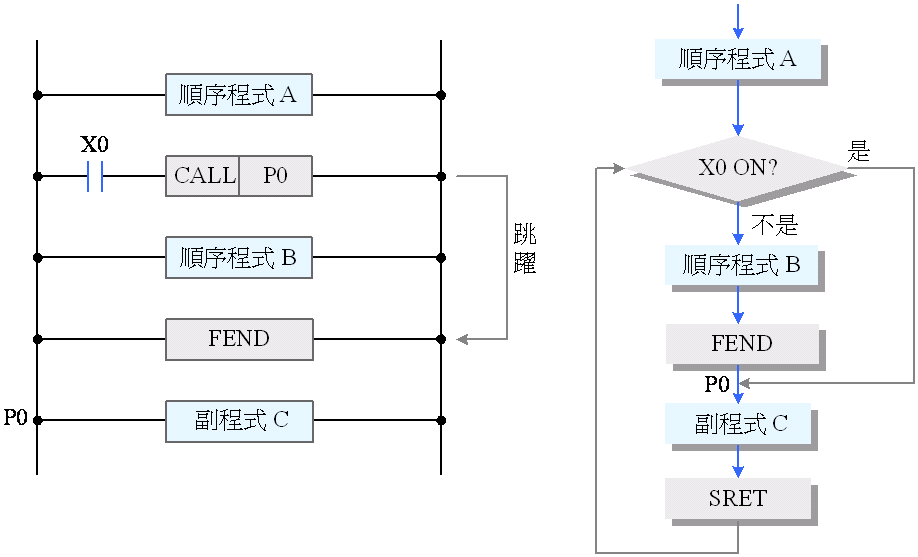

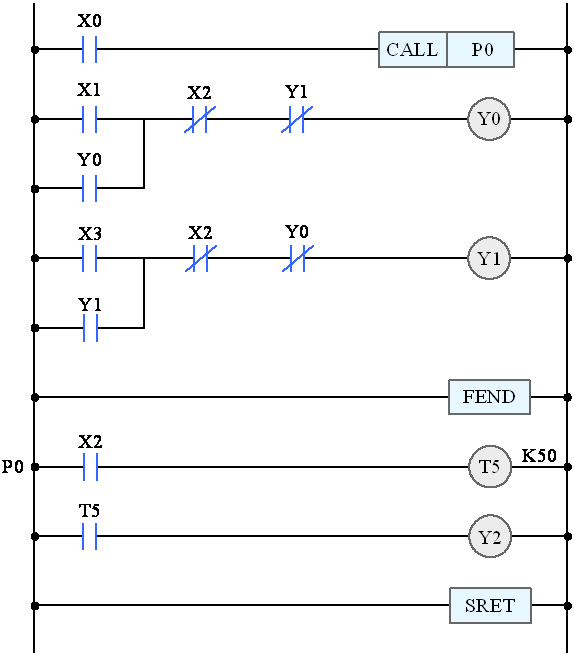

CALL指令

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	11	ANI	Y0
1	CALL	P0	12	OUT	Y1
3	LD	X1	13	FEND
4	OR	Y0	14	P0
5	ANI	X2	15	LD	X2
6	ANI	Y1	16	OUT	T5
7	OUT	Y0		K	50
8	LD	X3	19	LD	T5
9	OR	Y1	20	OUT	Y2
10	ANI	X2	21	SRET

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

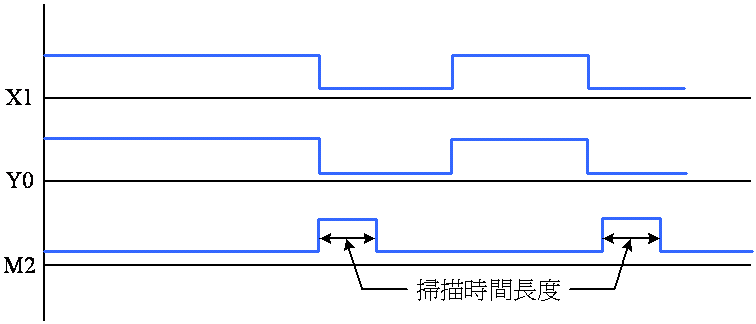

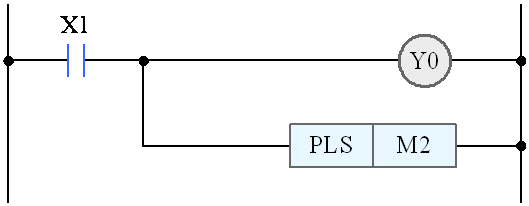

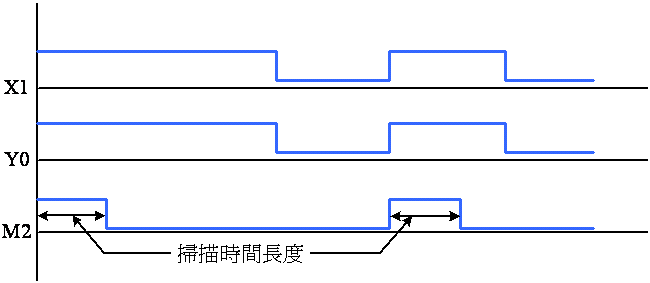

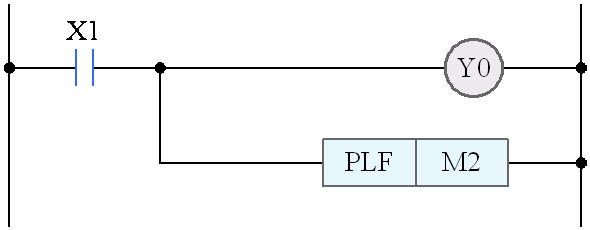

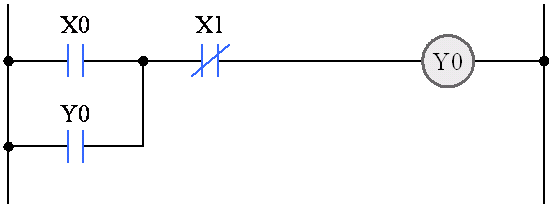

PLS/PLF指令

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number
0	LD	X0
1	OR	Y0
2	ANI	X1
3	OUT	Y0
4	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SET指令與RST指令

Address	PLC Code	Number
0	LD	X1
1	SET	Y0
2	SET	M0
3	LD	X2
4	RST	Y0
5	RST	M0
6	LD	M0
7	OUT	Y1
8	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

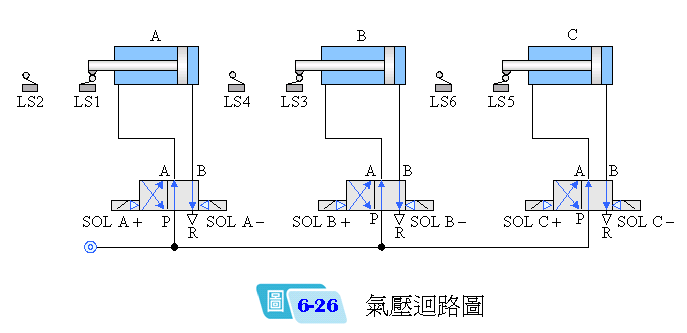

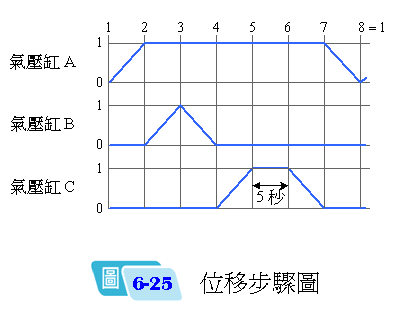

可程式控制器之應用實例
　

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

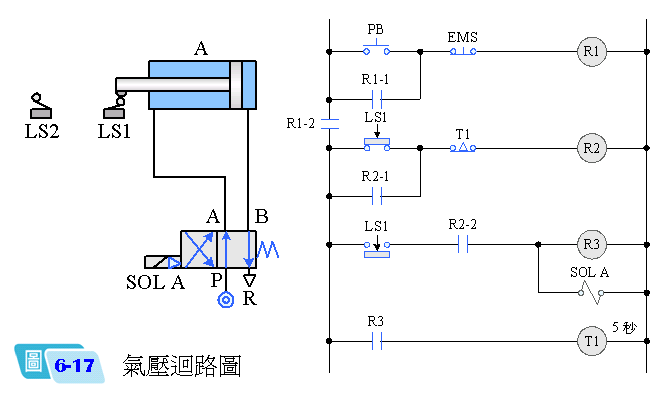

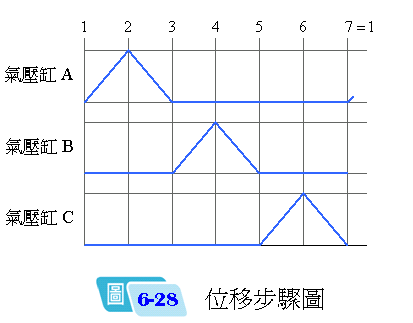

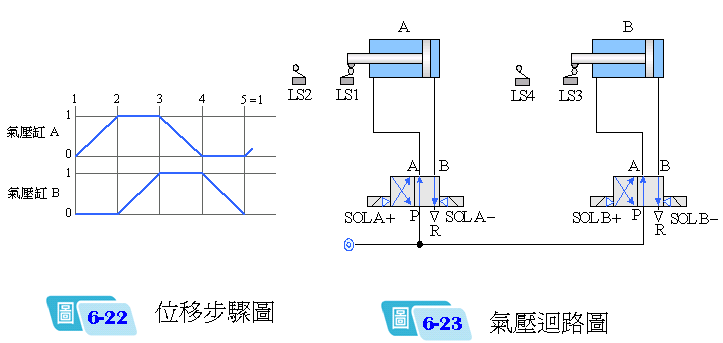

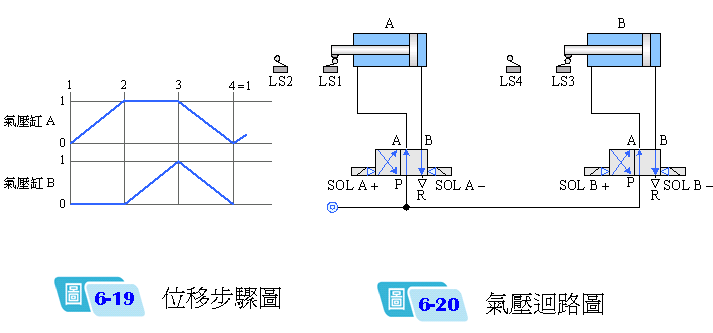

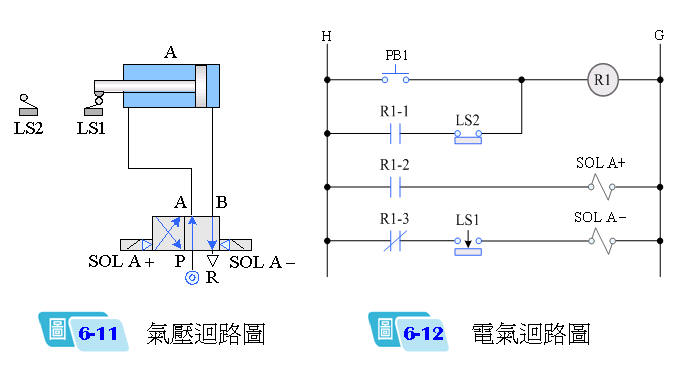

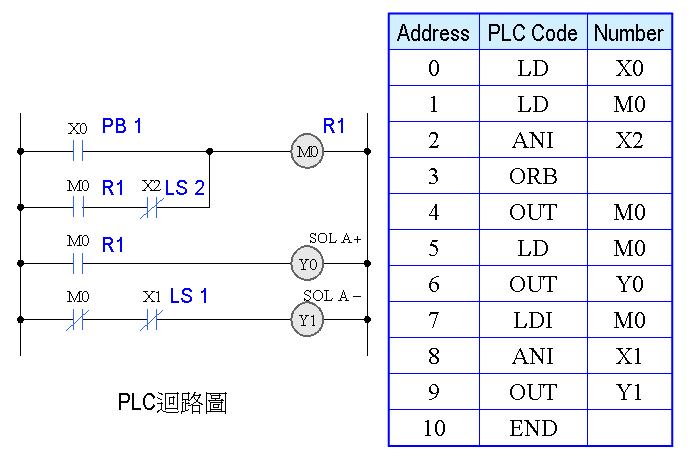

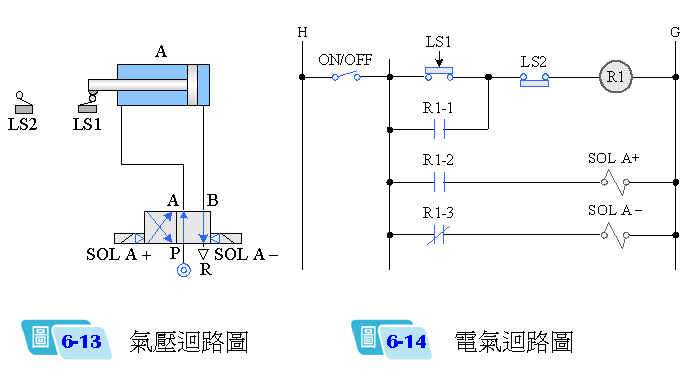

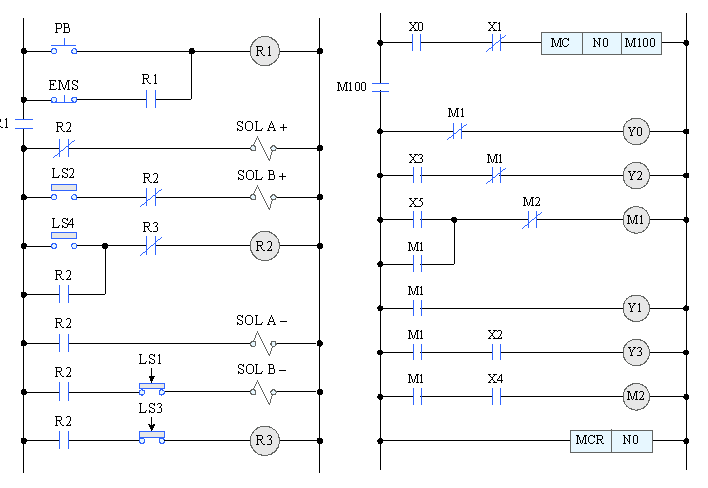

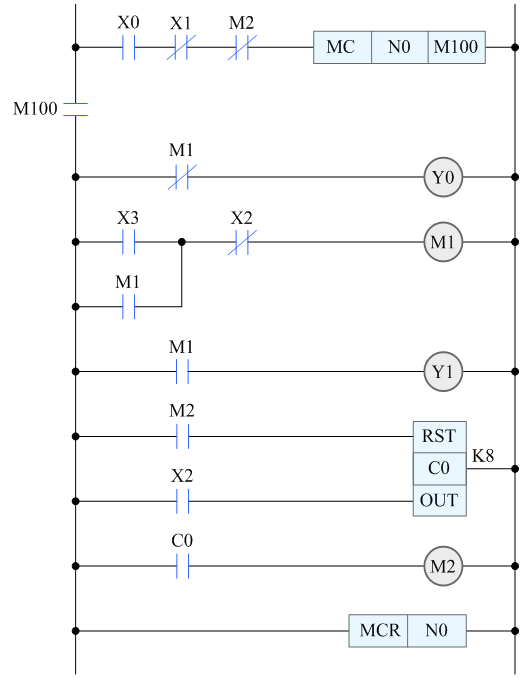

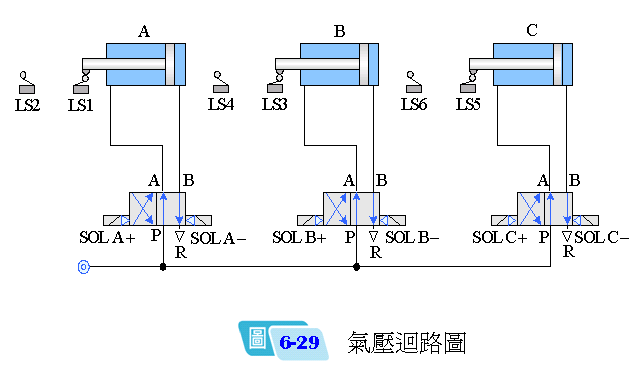

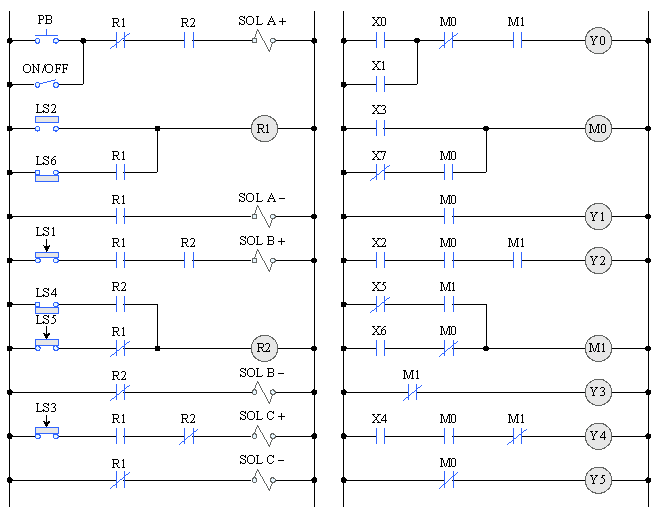

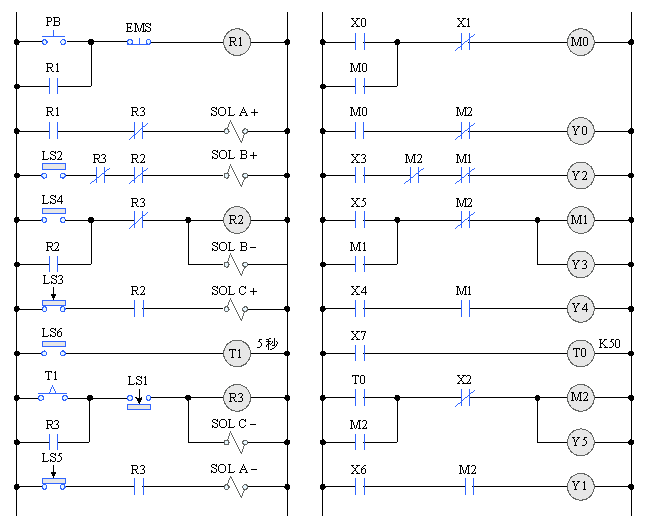

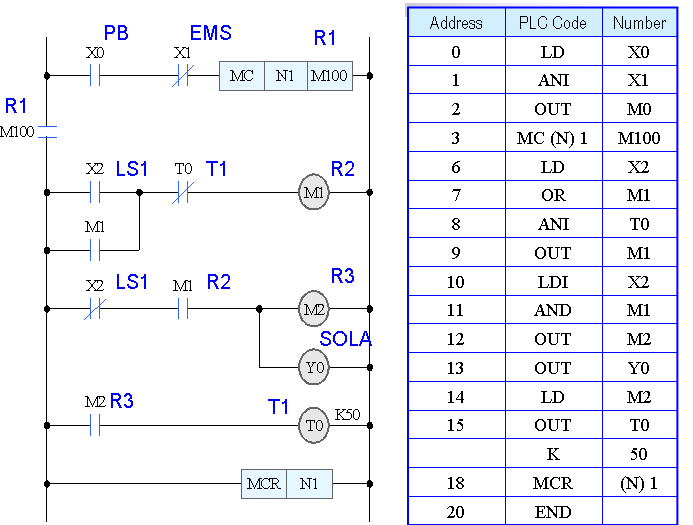

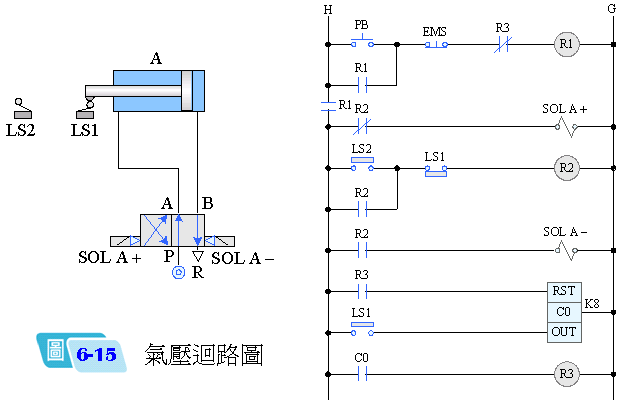

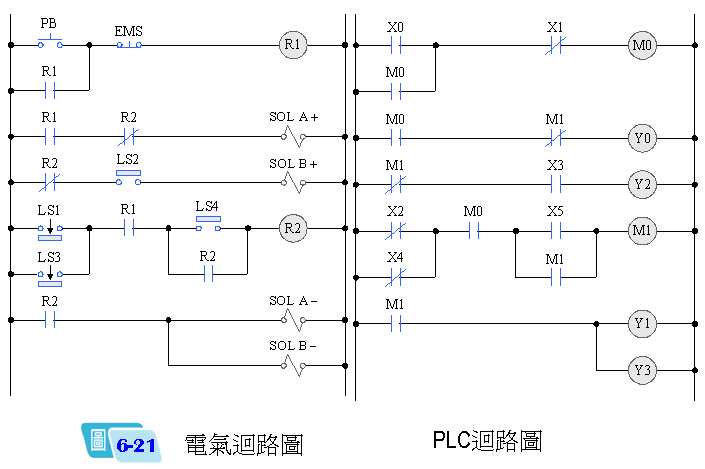

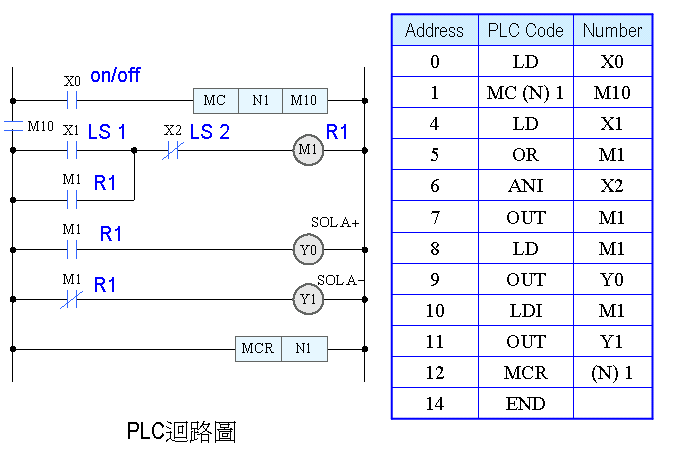

PLC迴路圖

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	13	OUT	Y1
1	ANI	X1	14	LD	M2
2	ANI	M2	15	RST	C0
3	MC (N) 0	M100	17	LD	X2
6	LDI	M1	18	OUT	C0
7	OUT	Y0		K	8
8	LD	X3	21	LD	C0
9	OR	M1	22	OUT	M2
10	ANI	X2	23	MCR	(N) 0
11	OUT	M1	25	END
12	LD	M1

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	11	ORI	X4
1	OR	M0	12	AND	M0
2	ANI	X1	13	LD	X5
3	OUT	M0	14	OR	M1
4	LD	M0	15	ANB
5	ANI	M1	16	OUT	M1
6	OUT	Y0	17	LD	M1
7	LDI	M1	18	OUT	Y1
8	AND	X3	19	OUT	Y3
9	OUT	Y2	20	END
10	LDI	X2

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	13	OUT	M1
1	ANI	X1	14	LD	M1
2	MC (N) 0	M100	15	OUT	Y1
5	LDI	M1	16	LD	M1
6	OUT	Y0	17	AND	X2
7	LD	X3	18	OUT	Y3
8	ANI	M1	19	LD	M1
9	OUT	Y2	20	AND	X4
10	LD	X5	21	OUT	M2
11	OR	M1	22	MCR	(N) 0
12	ANI	M2	24	END

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	16	LD	X4
1	OR	M0	17	AND	M1
2	ANI	X1	18	OUT	Y4
3	OUT	M0	19	LD	X7
4	LD	M0	20	OUT	T0
5	ANI	M2		K	5
6	OUT	Y0	23	LD	T0
7	LD	X3	24	OR	M2
8	ANI	M2	25	ANI	X2
9	ANI	M1	26	OUT	M2
10	OUT	Y2	27	OUT	Y5
11	LD	X5	28	LD	X6
12	OR	M1	29	AND	M2
13	ANI	M2	30	OUT	Y1
14	OUT	M1	31	END
15	OUT	Y3

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Address	PLC Code	Number	Address	PLC Code	Number
0	LD	X0	16	LDI	X5
1	OR	X1	17	AND	M1
2	ANI	M0	18	LD	X6
3	AND	M1	19	ANI	M0
4	OUT	Y0	20	ORB
5	LD	X3	21	OUT	M1
6	LDI	X7	22	LDI	M1
7	AND	M0	23	OUT	Y3
8	ORB		24	LD	X4
9	OUT	M0	25	AND	M0
10	LD	M0	26	ANI	M1
11	OUT	Y1	27	OUT	Y4
12	LD	X2	28	LDI	M0
13	AND	M0	29	OUT	Y5
14	AND	M1	30	END
15	OUT	Y2

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

END
